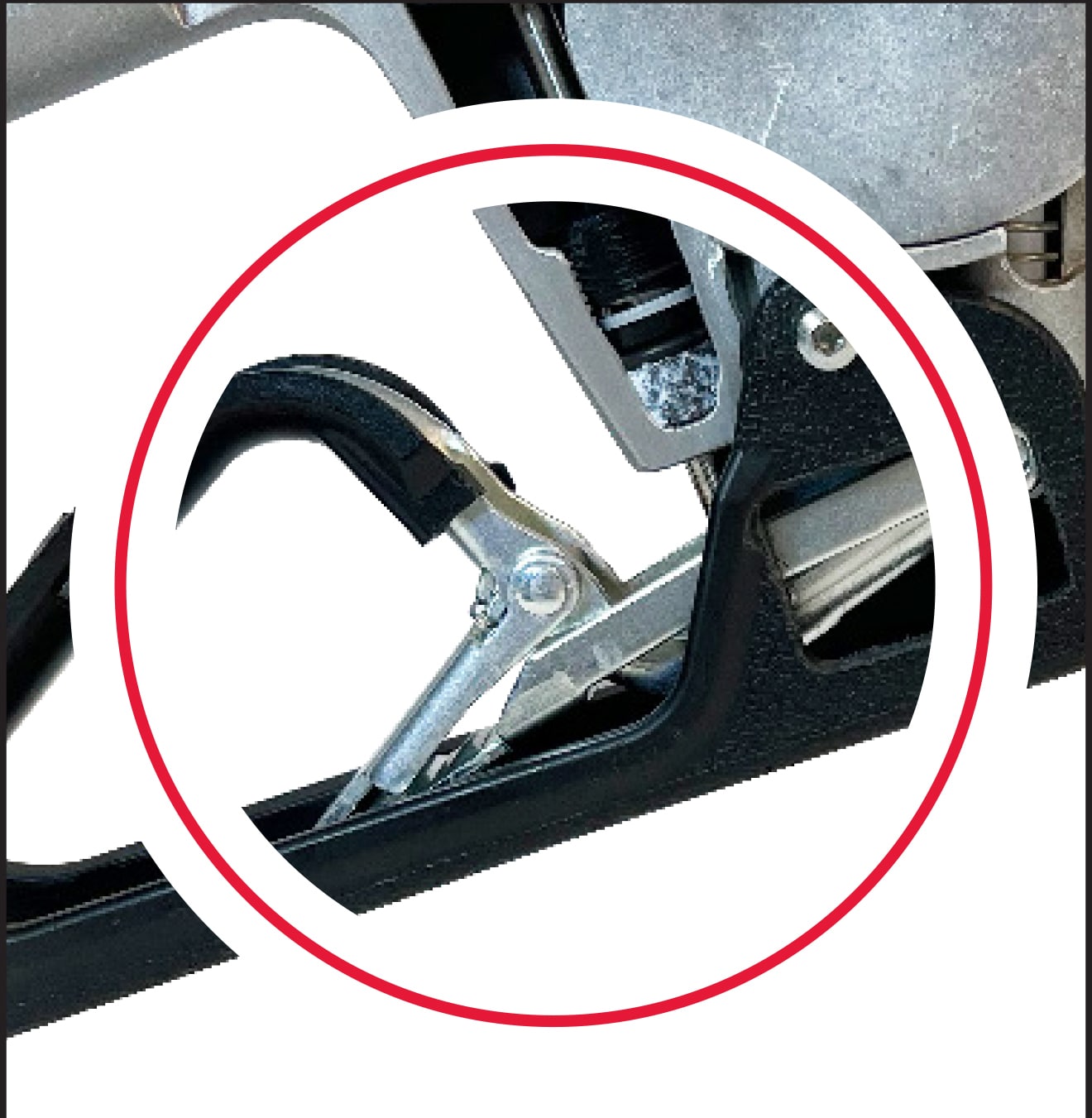

1" DEF Nozzle with Two Notch Hold Open Clip and Spout Ring
Product Info
Resources
Specs / Construction
Automatic shut-off Diesel Exhaust Fluid (DEF) nozzle for full-service and self-service stations.
Features/Benefits
SST DEF nozzle shuts off when tank is full.
Modular design for easy cleaning.
Constructed from materials 100% compatible with Diesel Exhaust Fluid (DEF).
Available with magnetic Accufuel® safety feature.
Equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.

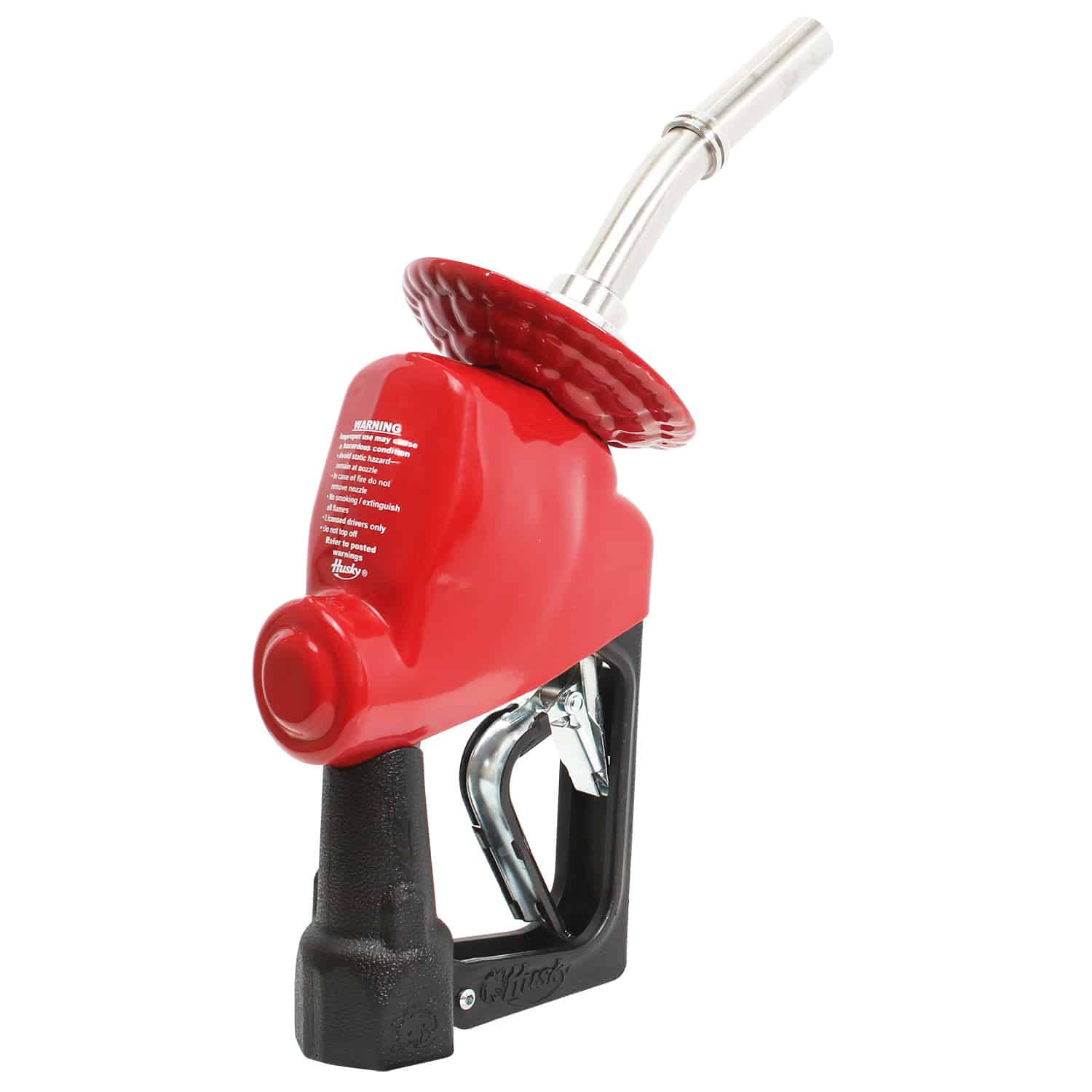

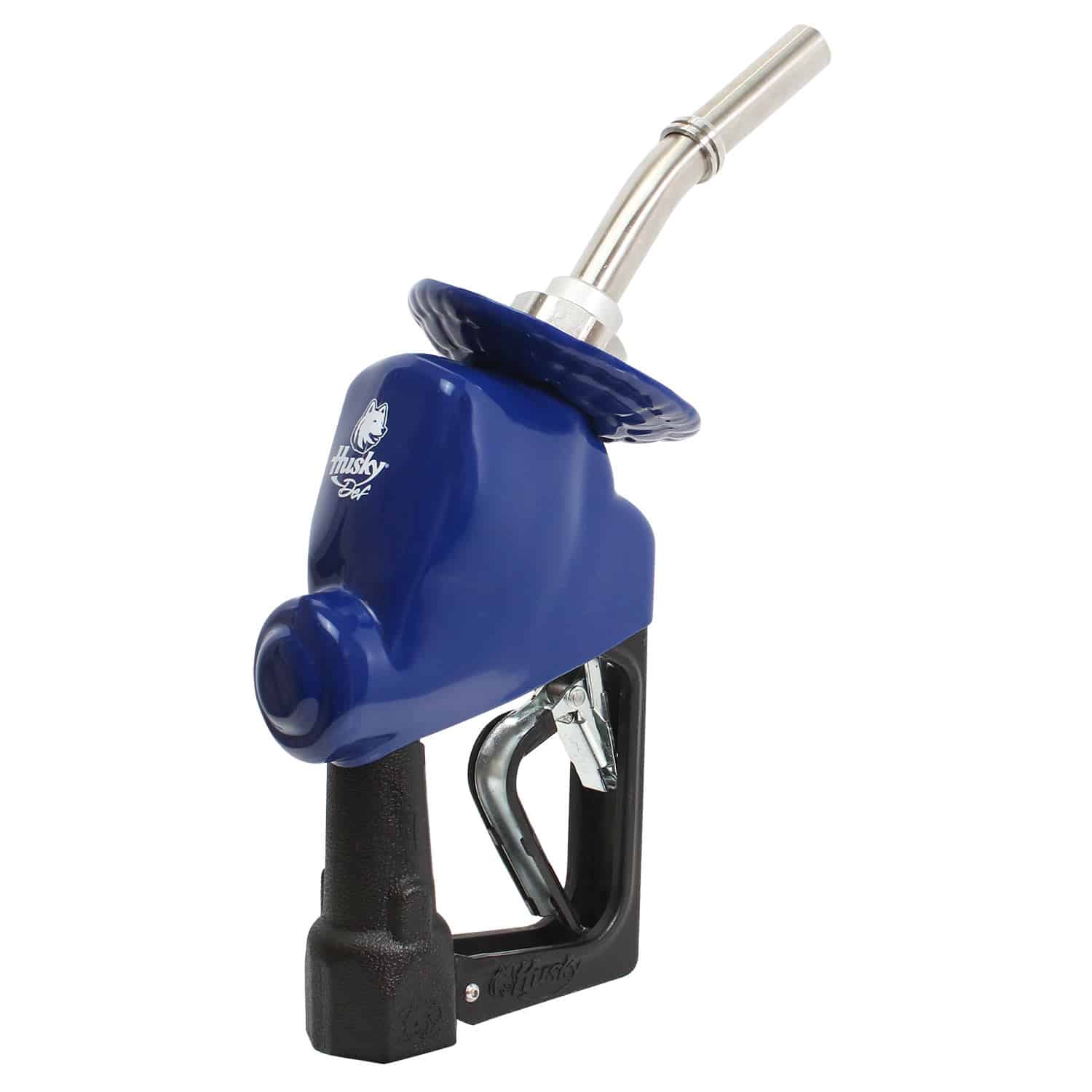

Comes standard with mate nozzle guard and handle cover.
Stainless Steel construction.

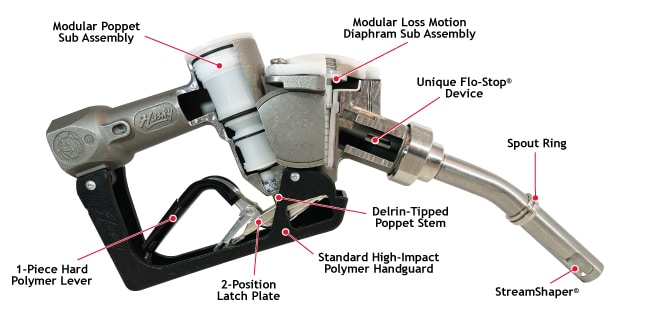

Construction
Body: Investment Cast Stainless Steel Seals: Fluorocarbon Packing: Double o-ring seal protected by fiber-reinforced Teflon® Lever: One-piece contoured steel with hard plastic cover Inlet: 1” / 25.4 mm BSP
Flow Rate

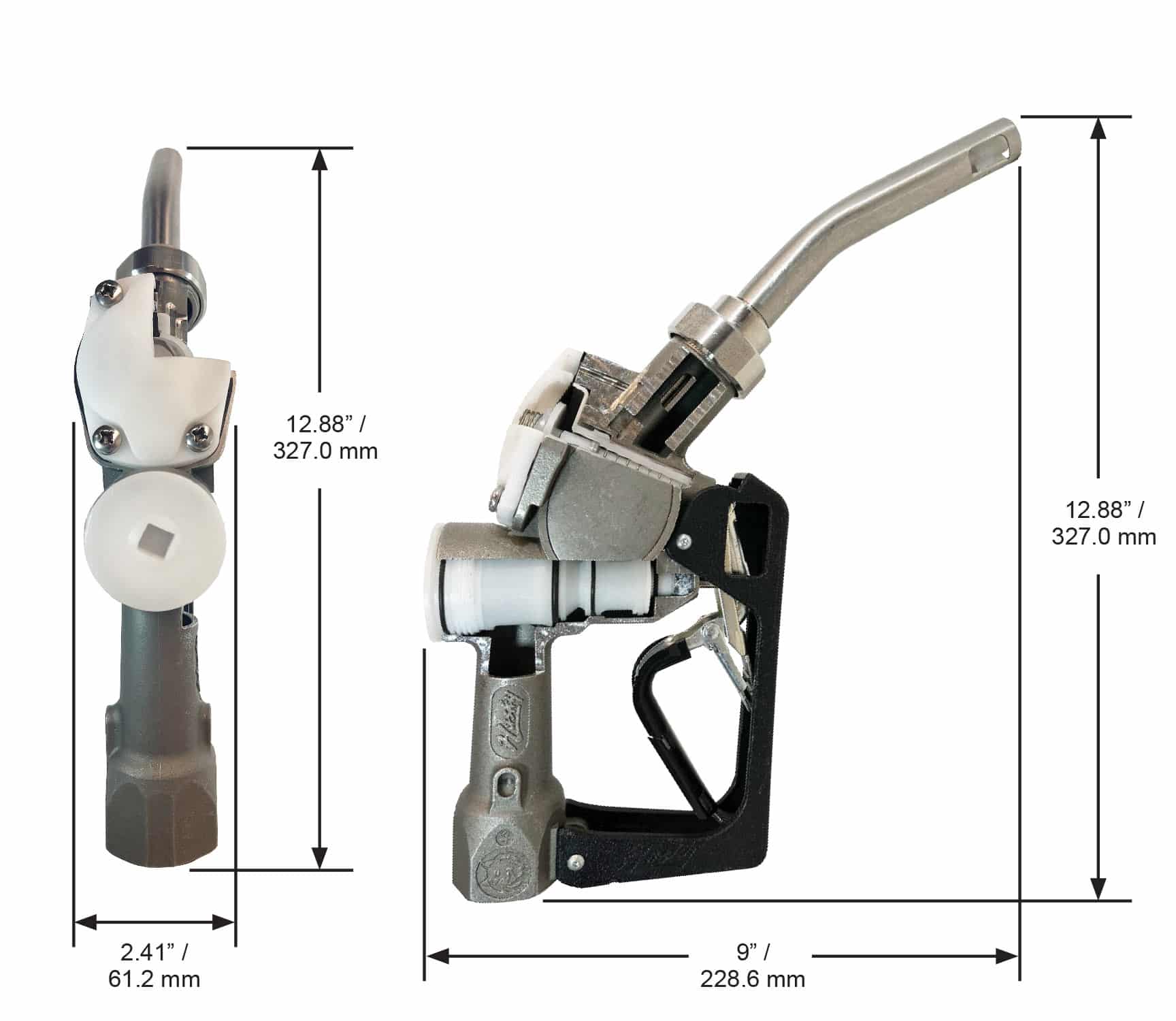

Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
007269: 1” M x 1” M BSPP Inline Swivel
007275: 1” M BSPP x M34 M Inline Swivel
007282: 3/4” M BSPP x 3/4” Hose Barb Roller Bearing Inline Swivel
007467: 1” F x 1” M BSPP Inline Swivel
008510: 1” M BSPP 1” F NPT Inline Swivel
010936: 3/4” M BSPP X 3/4” Hose Barb Inline Swivel
Choose a Safe-T-Break®
Choose …
007219: 1” M x 1” M BSPP Non-Reconnectable Stainless Steel Safe-T-Break®
008216: 1” M x 1” M BSPP Reconnectable Stainless Steel Safe-T-Break®
Choose a Swivel/STB Combo
Choose …
013185: M34 M NPT Multi-Plane Swivel connected to 1” BSP M Reconnectable Safe-T-Break®
014438: 1” BSP M Multi-Plane Swivel connected to 1” BSP M Reconnectable Safe-T-Break®
Choose Accessories, Testing and Maintenance
Choose …
007150: Poppet Valve / Venturi Cartridge Assembly
007160: Plunger Cartridge Assembly
007163: Loss Motion Diaphragm Cartridge Assembly
007523: 1” BSPP Seal Kit Assembly
Choose Spouts
Choose …
007360: with Spout Ring and Flo-Stop®
007362: with Flo-Stop®
007364: with Spout Ring and Magnetic Accufuel® Safety Feature
Choose Guards
Choose …
000226: Mate Nozzle Guard
000544: Full Grip Guard
001808: Waffle Splash Guard
007376: Handle Cover (Black)
008429: DEF Handguard Repair Kit
Please contact your distributor for information on creating an EZ-Connect for this nozzle.
EZ-Connects for this product have not been configured.
