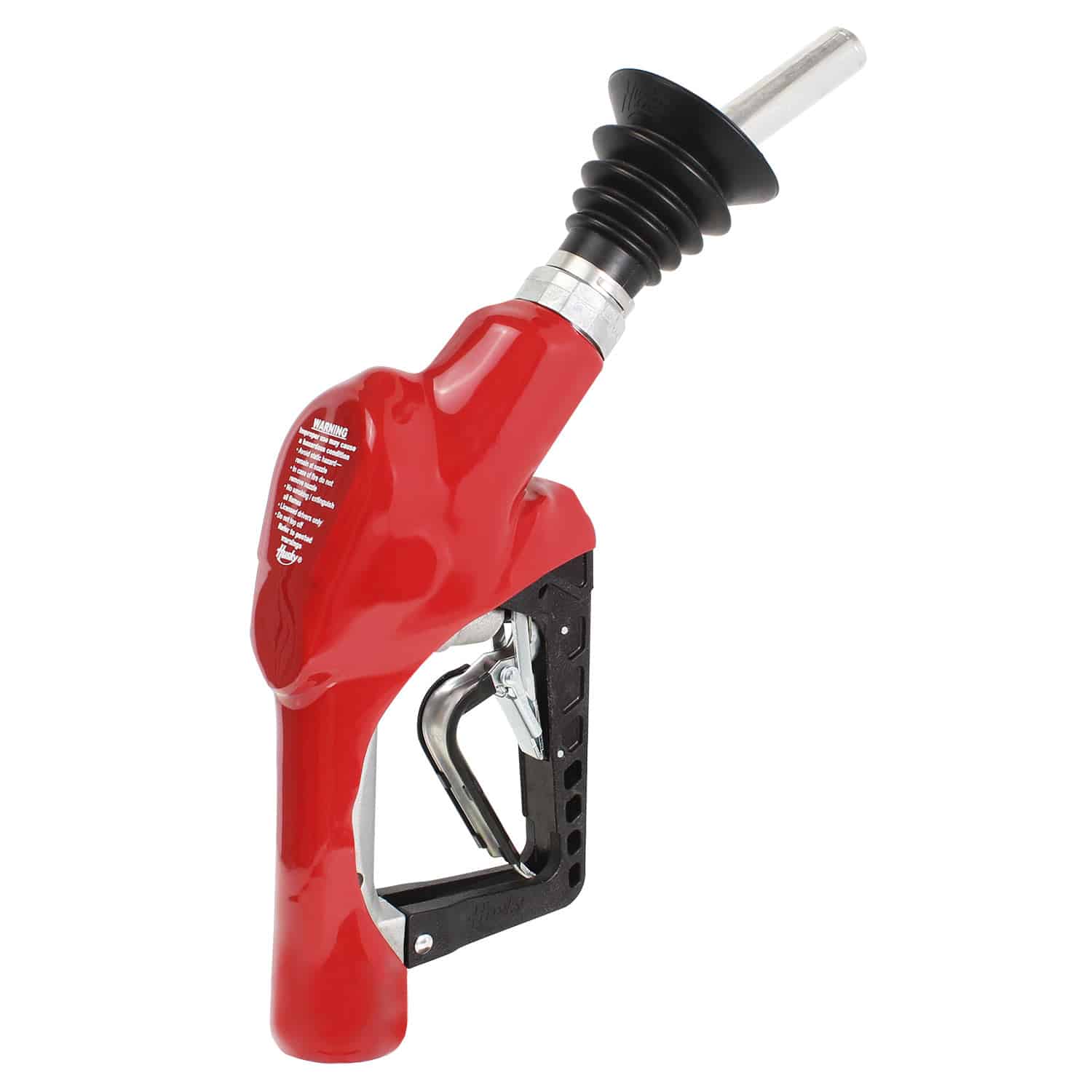

V34 Unleaded Nozzle with Three Notch Hold Open Clip and Vapor Escape Guard
Product Info
Resources
Specs / Construction
Pressure activated, automatic shut-off vacuum assist nozzle for full-service, self-service and unattended stations.

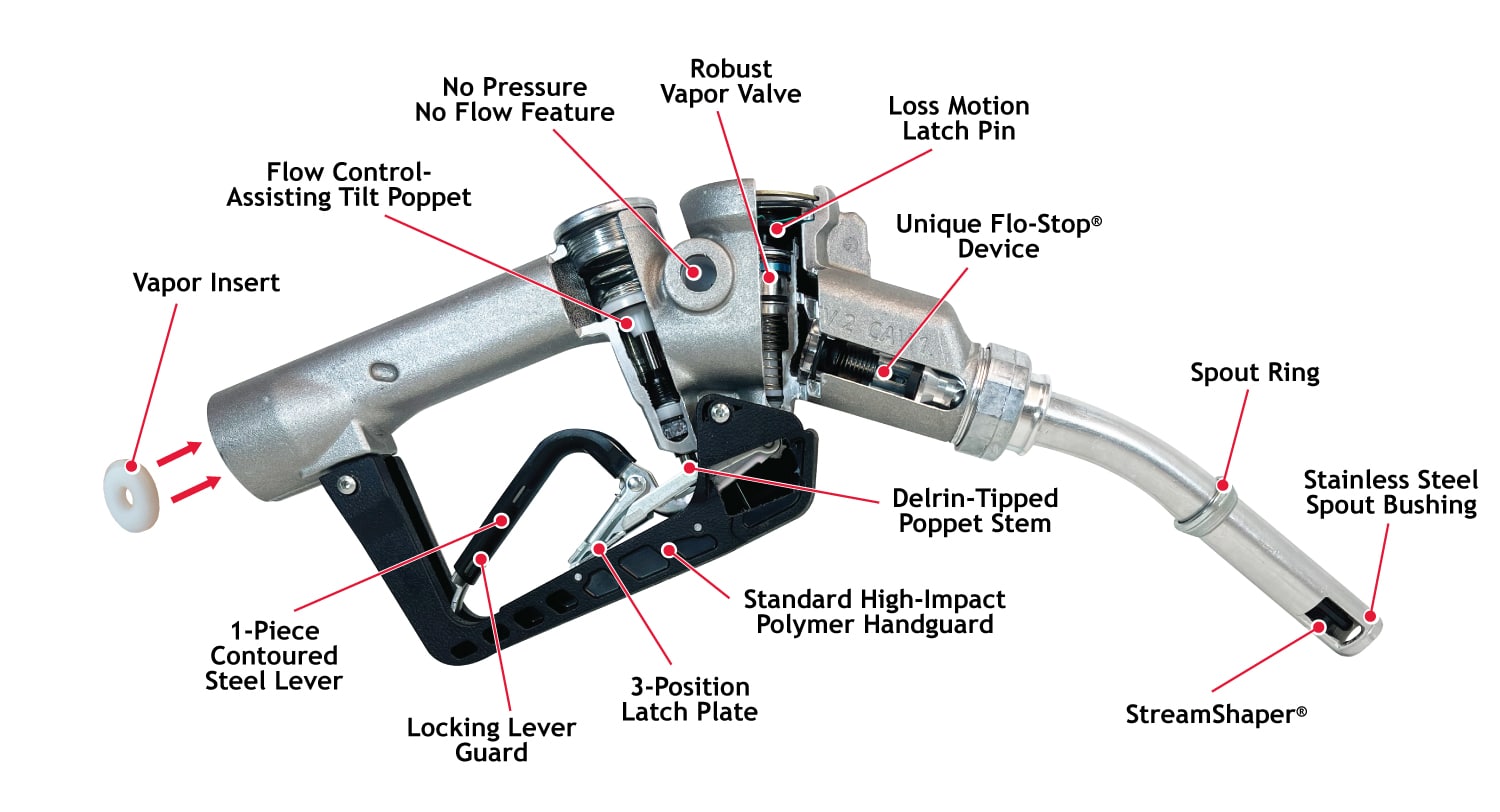

Features/Benefits
V34 nozzle shuts off when: — the pump shuts off. — the gas tank is full. — the lever is opened before the pump is turned on. — the leak detector has not completed the test cycle.
Stainless steel reinforced spout bushing keeps spout tip round, and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill neck or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Strong vapor valve in the nozzle that is mechanically operated by the on-off action of the nozzle’s lever.
Husky® vapor return line is an internal part of the body casting, thus eliminating potential vapor leak points and fugitive evaporative emissions from the fuel remaining in the vapor path of the hose.
Vapor assist achieved at the body end of the spout where a vapor ring catches emissions.
Uses conventional unleaded spout with spout ring and soft vapor escape guard.
Nozzle comes standard with a full grip guard.
Optional cold weather seals are rated to -40°F/C.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Optional vapor insert increases the vapor back pressure, closely matching that of the competition, and making installation a breeze, with little-to-no changes to the vacuum pump draw.
Optional sightglass provides a clear window for the customer to view the fuel as it passes through the main poppet valve.
Construction
Body: One piece sand cast aluminum with high-impact polymer handguard Seals: Fluorocarbon Packing: Double o-ring seal protected by fiber-reinforced Teflon® Lever: One piece contoured steel with hard polymer lever cover Inlet: M34 x 1.5 mm
Flow Rate
Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
