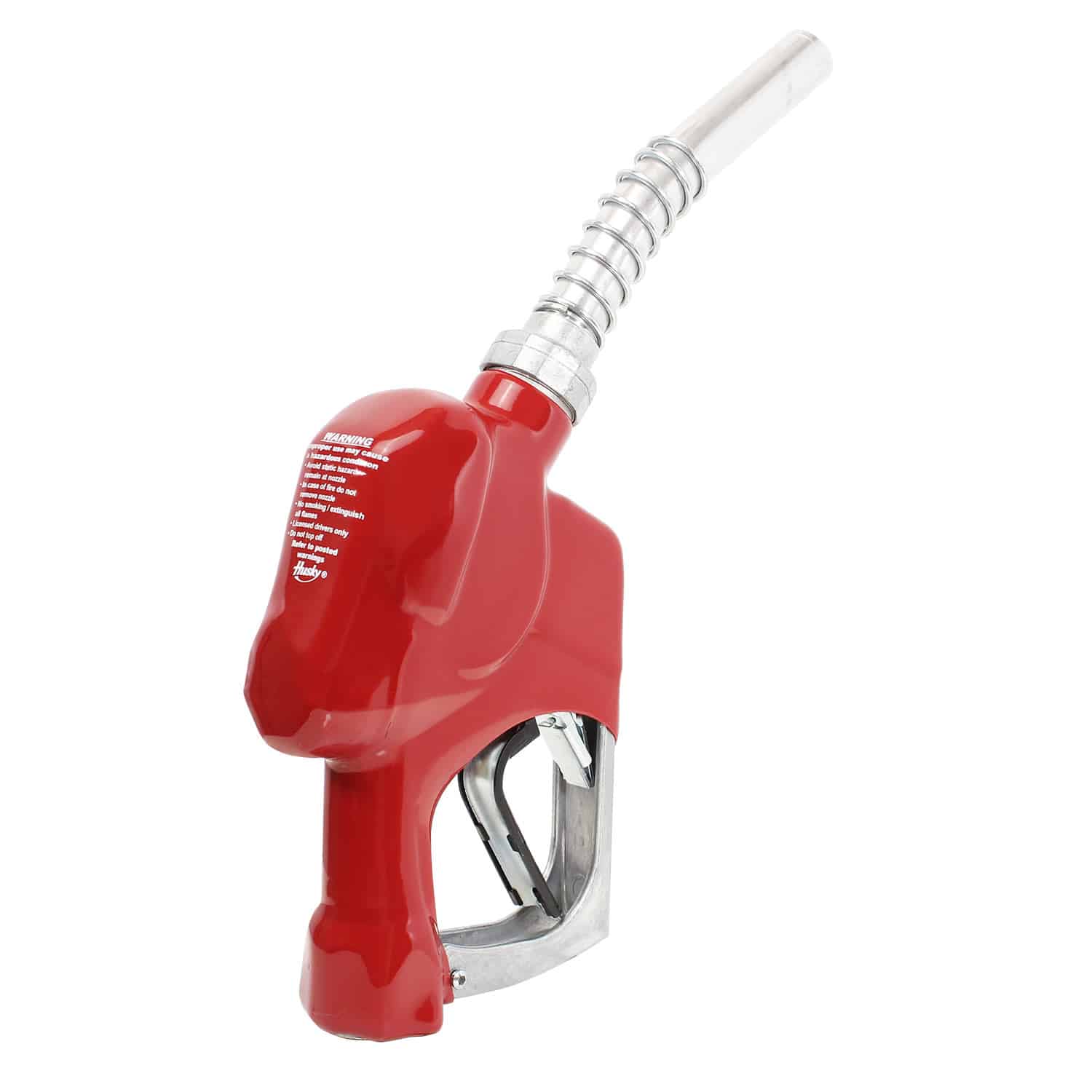

1" Light Duty Diesel Nozzle with Three Notch Hold Open Clip, Metal Handguard and Cold Weather Seals
Product Info
Resources
Specs / Construction
Pressure Activated automatic shut-off nozzle for full-service and self-service stations.
Features/Benefits
1AS nozzle shuts off when: — the pump shuts off. — the gas tank is full. — the lever is opened before the pump is turned on. — the leak detector has not completed the test cycle.

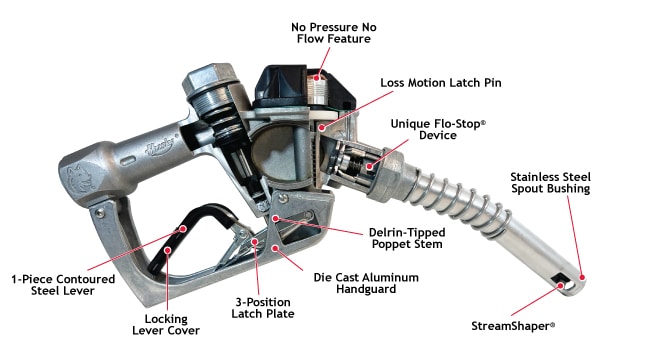

Stainless steel reinforced spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
Construction
Body: One piece die cast aluminum with high-impact polymer handguard Seals: Fluorocarbon Packing: Double o-ring seal protected by fiber reinforced Teflon® Lever: One-piece contoured steel with hard polymer cover Inlet: 1” / 25.4 mm NPT
Flow Rate
Dimensions
Configure a Complete Fueling System
Choose any options that are applicable. If you would prefer a complete pump-to-car hanging hardware assembly that is certified, pre-assembled, pressure and continuity tested hanging hardware, select the “Make it an EZ-Connect®” tab to configure your EZ-Connect®.
Add Accessories / Options
Make it an EZ-Connect®
Choose a Swivel
Choose …
000087: 1” M x 1” F NPT Multi-Plane Swivel
000095: 1” M x 1” F NPT 70° Pump Swivel
000352: 1” M x ¾” F NPT Multi-Plane Swivel
000356: 1” M x ¾” F NPT Multi-Plane Swivel Anodized Black
003395: 1” M x 1” F NPT Multi-Plane Restricted Swivel
004860: 1” M x 1” F NPT Multi-Plane High Volume Swivel
Choose a Safe-T-Break®
Choose …
002276: 1” F x 1” F NPT Reconnectable Safe-T-Break®
005231: 1” F x 1” F NPT Low Pull Reconnectable Safe-T-Break®
005812: 1” F x 1” F NPT Non-Reconnectable Safe-T-Break®
006301: 1” F x 1” F NPT Non-Reconnectable PCC Safe-T-Break®
008331: 1” F x 1” F NPT CK Reconnectable MAGBREAK®
Choose Swivel/STB Combo
Choose …
005969: 1” M NPT Multi-Plane Swivel connected to 1” F NPT Reconnectable Safe-T-Break®
Choose Spout
Choose …
001471: Light Duty Diesel Spout without Flo-Stop® with StreamShaper®
001473: Unleaded Spout without Flo-Stop®
010353: Light Duty Diesel Long Spout without Flo-Stop®
